KEIm-A5E(A3C)SoM Mini Product Information

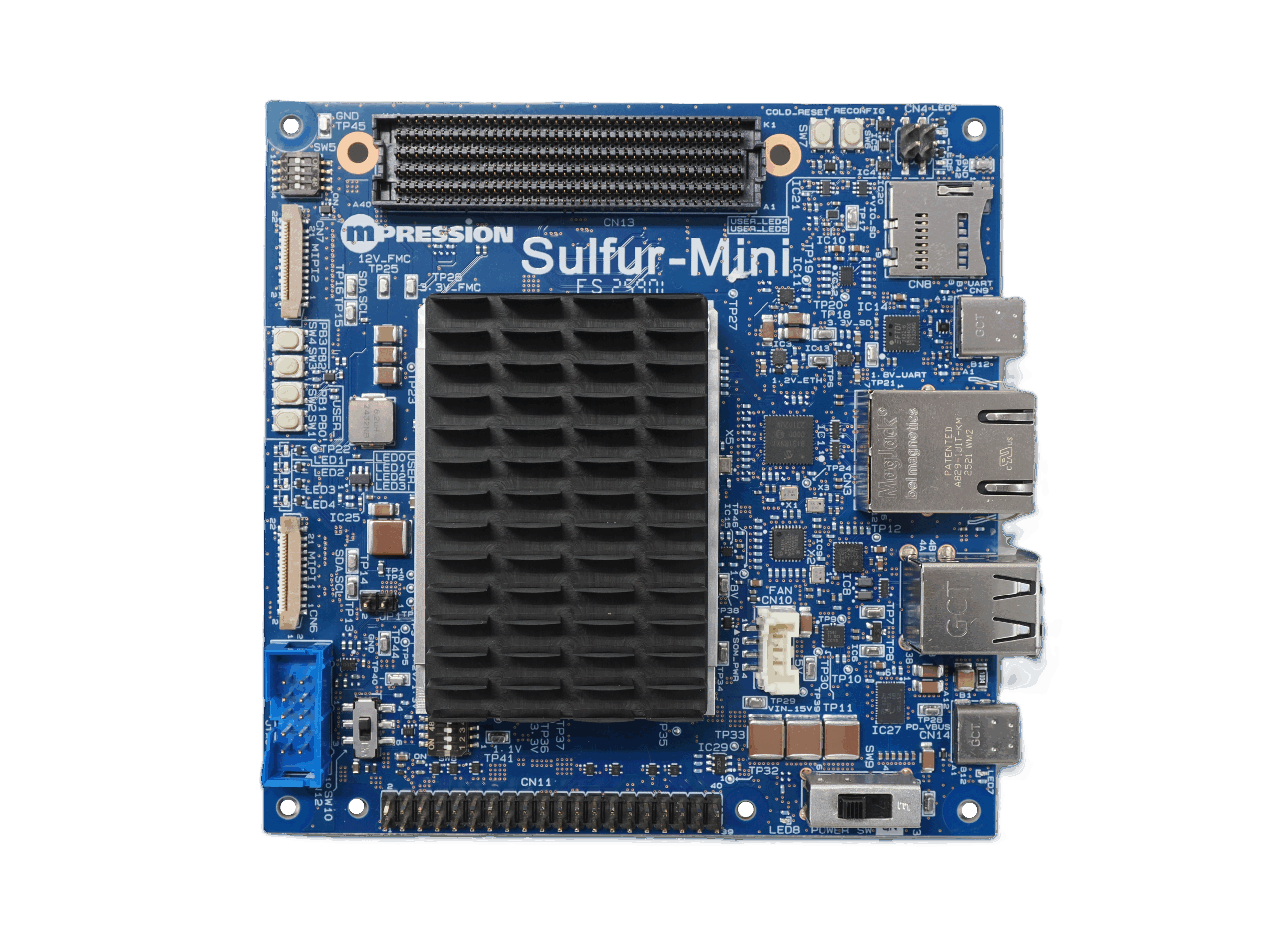

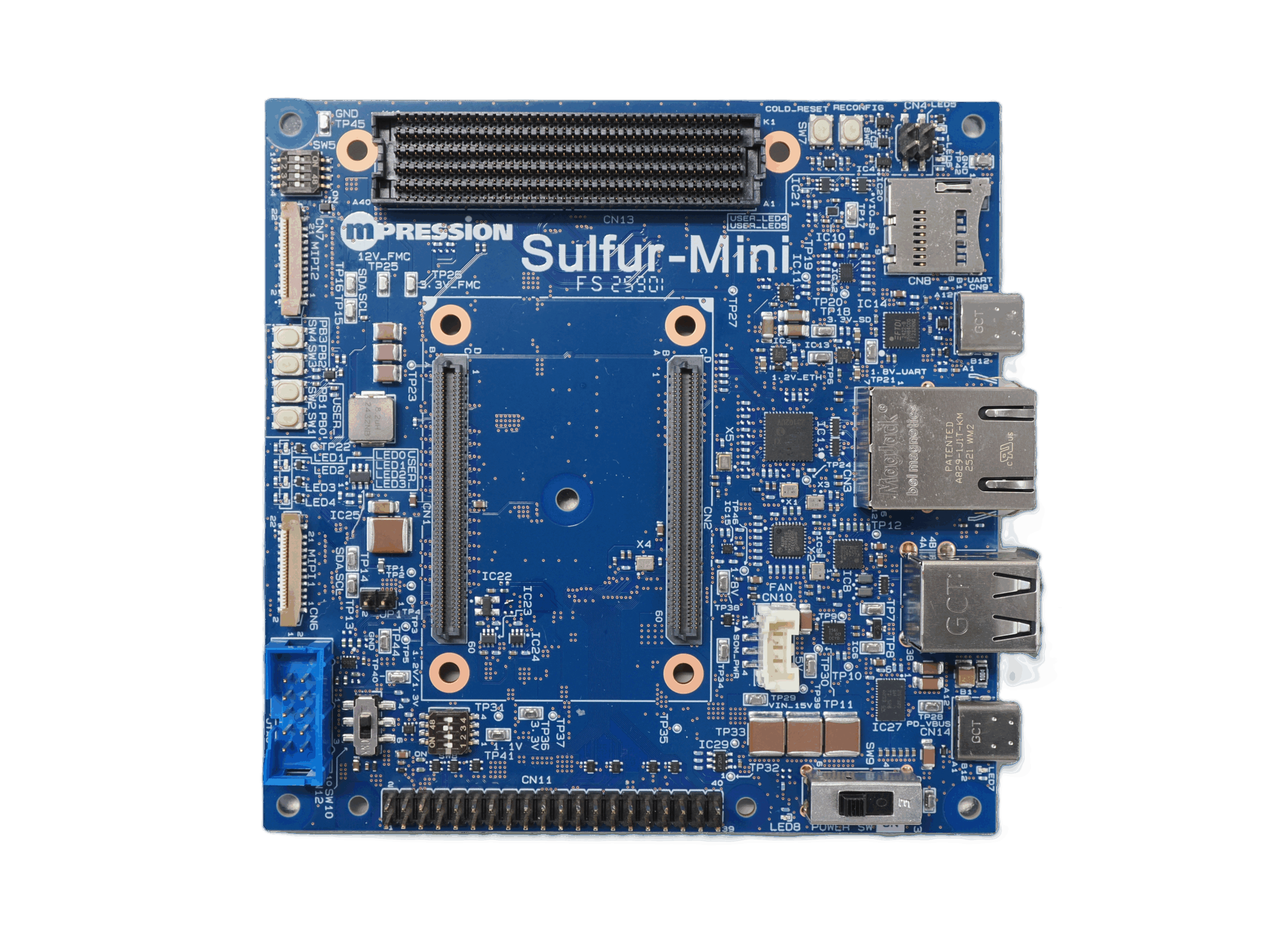

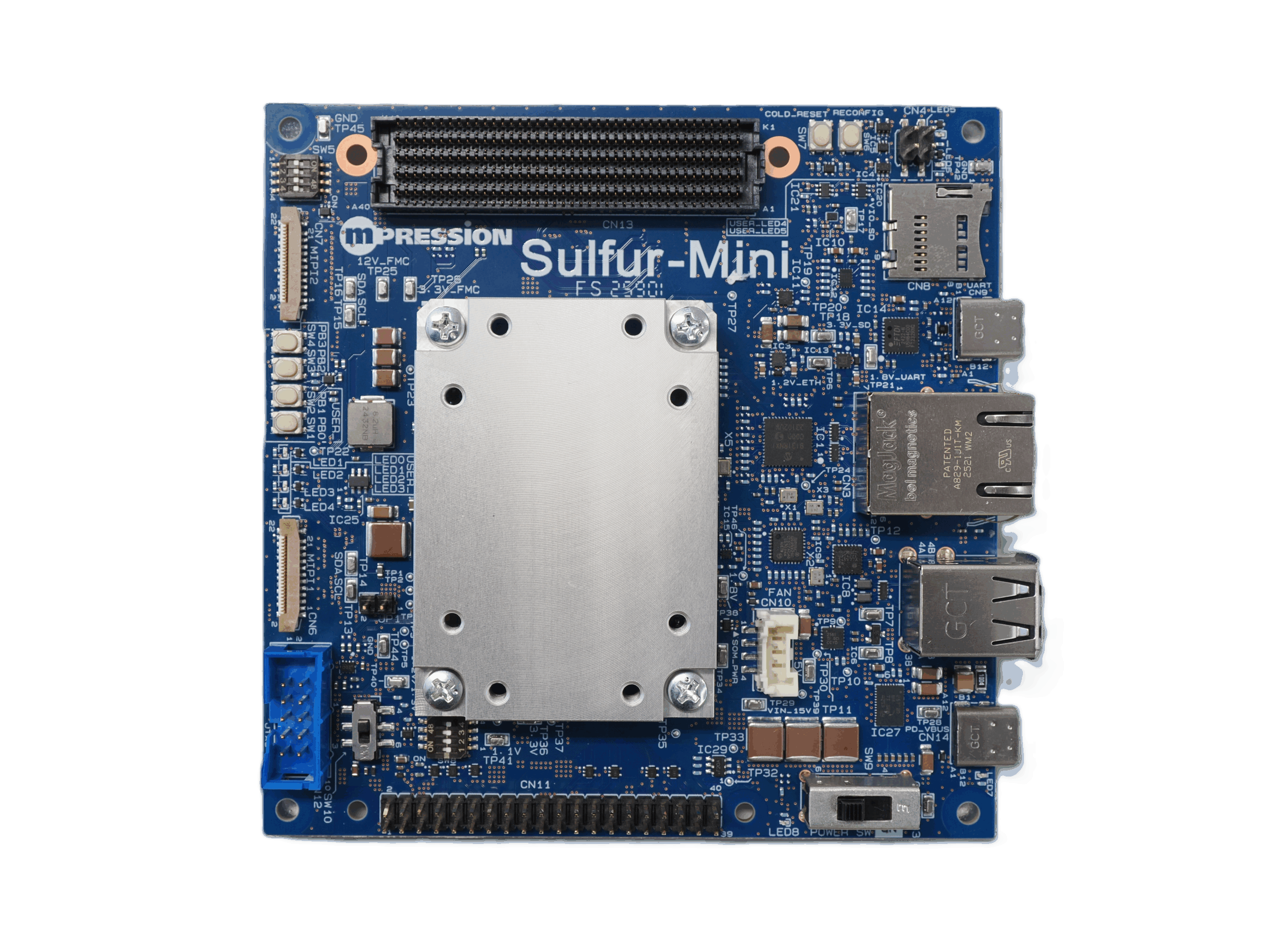

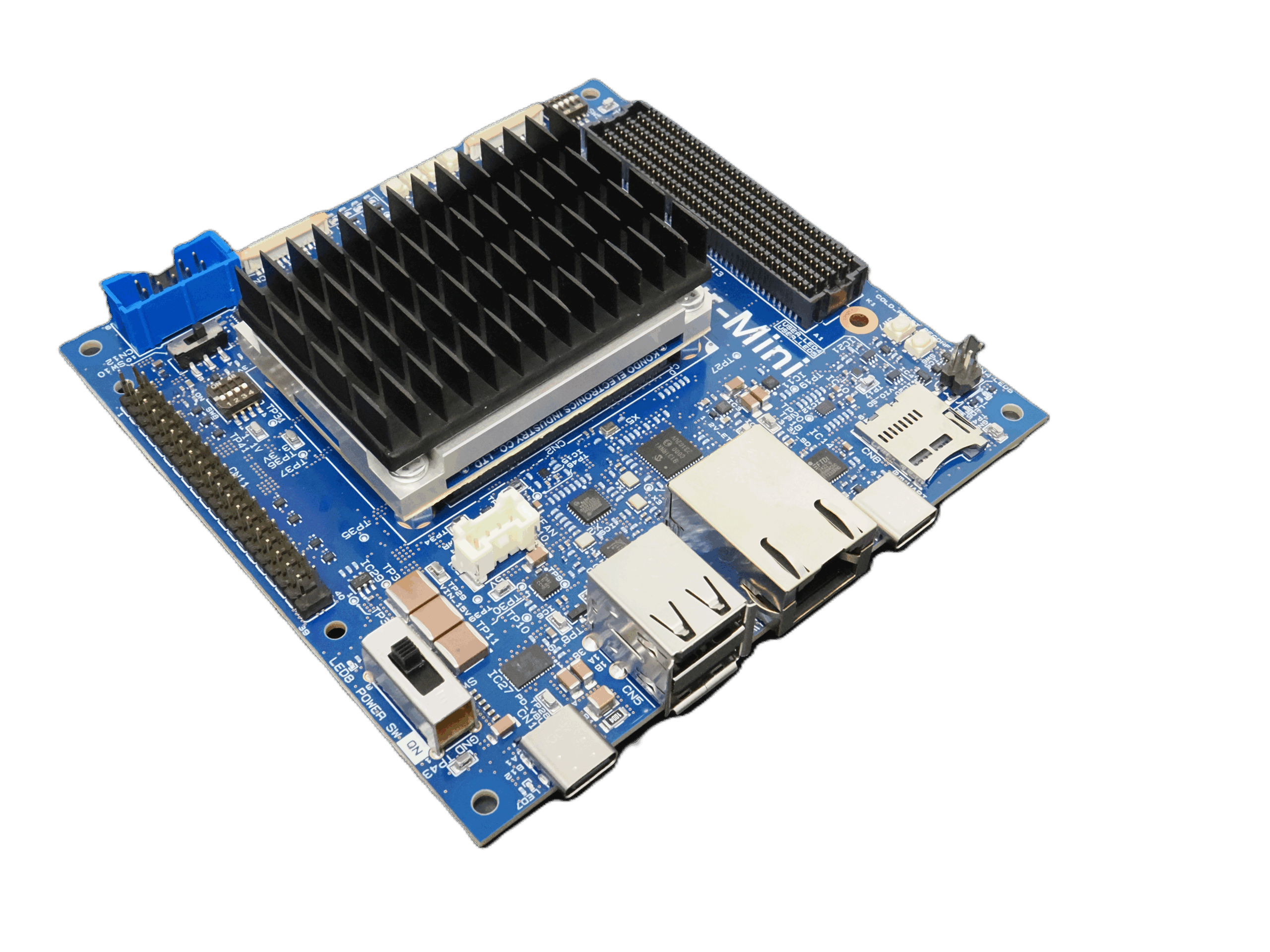

Product Appearance

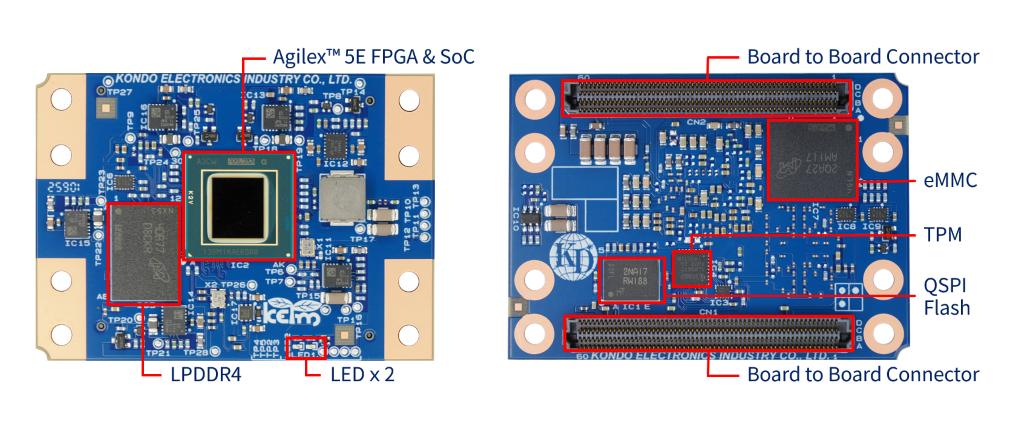

SoM Layout

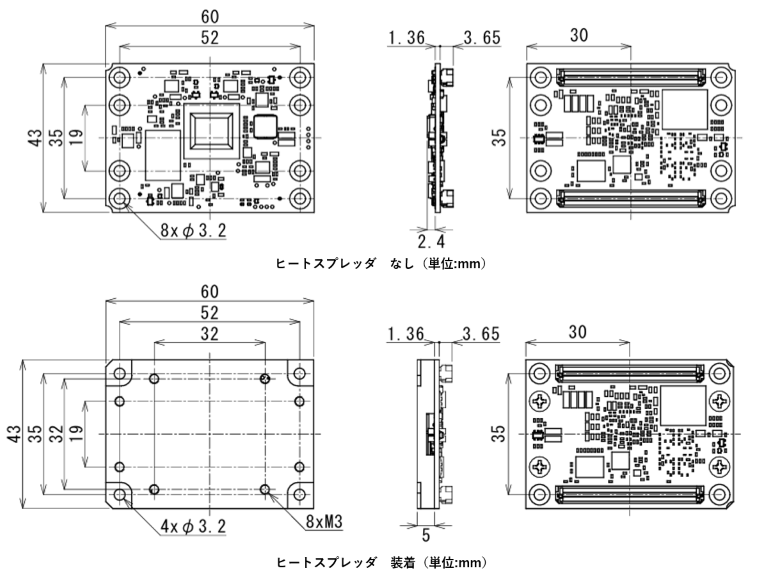

SoM Dimensions
Specifications
SoC FPGA
| Agilex™ 5／3 FPGA & SoC | |
| Device | Agilex™ 5 SoC FPGA E-Series or Agilex™ 3 SoC FPGA C-Series M16A Package ・A5E 028B/013B/008B ・A3C 100/135 The standard model uses the A5E013B device. Other devices are available as custom options. |
| Processor | Agilex™ 5 E-Serises ・Dual-core Arm Cortex-A76 up to 1.4 GHz ・Dual-core Arm Cortex-A55 up to 1.25 GHz Agilex™ 3 SoC FPGA C-Series ・Dual-core Arm Cortex-A55 up to 800 MHz |
| Logic elements | Agilex™ 5 SoC FPGA E-Series ・up to 138,060 LEs (282,256LEs for the A5E028B model) Agilex™ 3 SoC FPGA C-Series ・up to 135,110 LEs |
Peripheral
| Memory | 4GB 32bit LPDDR4 SDRAM |
| Storage | 32GB eMMC |
| Configuration ROM | 1Gbit QSPI Flash |
BtoB Connector
| 240pin BtoB Connector x2 | |
| Connector | ADF6-60-03.5-L-4-2-A-TR (Samtec) |
| FPGA HSIO | up to 120 pins (24 of which are fixed at 1.1V) |
| FPGA HVIO | up to 40 pins |
| Transceiver | Agilex™ 5 SoC FPGA E-Series ・17 Gbps transceivers, upt to 4 channels (4 channels on the A5E028B model) Agilex™ 3 SoC FPGA C-Series ・12.5 Gbps transceivers, upt to 4 channels |
| Communication I/F | I2C, UART, ULPI, RGMII, GPIO, JTAG |
| Debug I/F | JTAG |
General specificatione
| Power supply | +4.7V to 13.2V |
| Operating temperature | -40 to 85℃ |
| Dimentione | 60ｍｍ x 43mm |
Development Environment

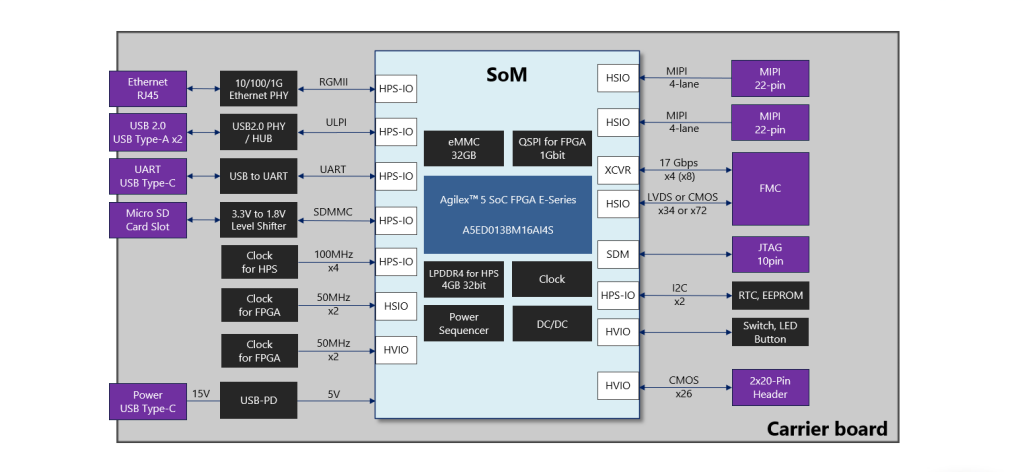

Sulfur-Mini Block Diagram
| SOM Development Kit「Sulfur-Mini」 | |
| SOM | KEIm-A5E(A3C)SoM Mini |
| Ethernet | RJ45 (10/100/1000Base-T) |
| USB2.0 | USB Type-A x2 |
| UART | USB Type-C (USB serial) |
| Expansion | FMC x1, 2×20-Pin Header |
| JTAG I/F | JTAG 10-pin (compatible with the Altera USB Blaster III, sold separately) |
| Others | LED x4, Push Switch x4, Dip Switch x4, RTC, EEPROM |
| Power Supply | 15V through USB-PD |
| Dimensions | 110 x 110 mm (Excluding protrusions) |
| Operating temperature | 0～+40°C |
※Sulfur-Mini is a development platform consisting of the KEIm-A5ESoM Mini and a carrier board equipped with various external interfaces.
Technical Support
Brochure
Coming Soon
Manual & Reference Design
- SoM Hardware Manual
- Sulfur-Mini Kit User Manual
- Sulfur-Mini Carrier Board Schematics
- Reference Design
