KEIm is System on Module (SoM)with FPGA.

Taking advantage of the features of FPGAs that can process in parallel, they are supported by many customers, including applications such as hardware accelerators that are indispensable in the IoT era.

Introducing our own product “KEIm”, which brings together the best of Kondo Electronics’ technology.

Feelings put in the logo mark

“KEIm” is an acronym for Kondo Electronics Industry, which  is a representation for  “Keim = Bud” in German.

“I” in the center is the stem, and the leaves sprout, and the appearance of they growing to leaves is included in “KEIm”.

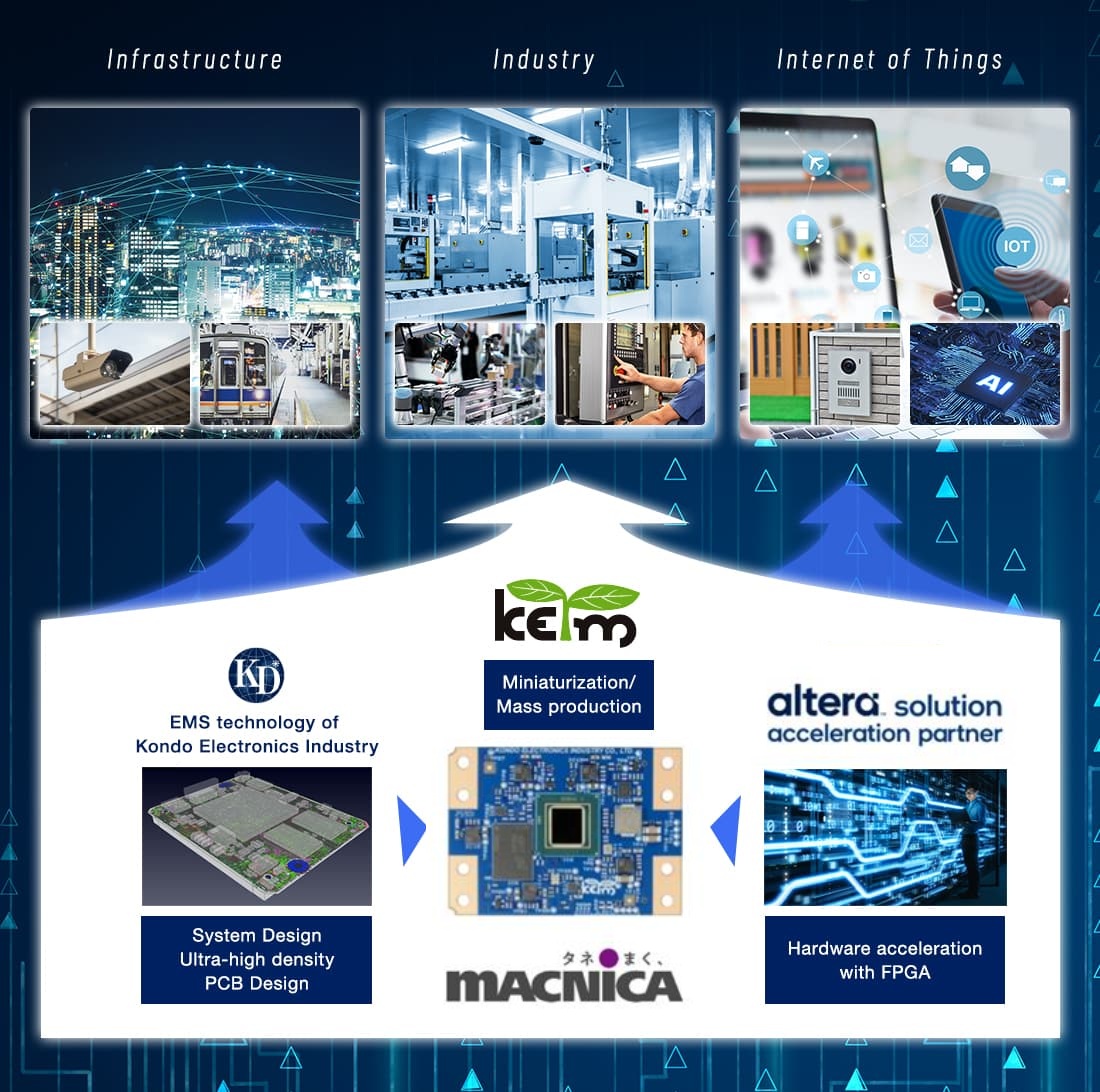

Application area of KEIm

Features of KEIm

• The world‘s smallest class SoM (System on Module) with FPGA
• KEIm has a wide operating temperature range and can be used for industrial equipment with severe environmental conditions.
• KEIm is designed for mass production. We accept order from small and medium lots.

Advantages of introduction

• This module is mass production, it can be developed on the same platform from prototype to mass production.
  Therefore, the development process can be simplified and shortened.

• The dimensions of the module is ultra-small. The space for installing the module is minimized, it contributes to the miniaturization of your product.

• The main chip is equipped with FPGA, it fits perfectly to your system depending on RTL customization.

Product Line

Product Model	KEIm-A5ESoM	KEIm-CVSoC	KEIm-25	KEIm-08
Product Introduction	For more information	For more information	For more information	For more information
Brochure	Coming Soon	Japanese English	Japanese English	Japanese English

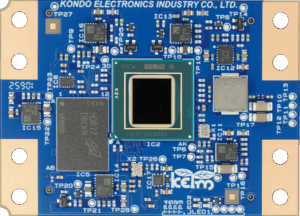

Appearance
Dimensions	118mm x 77mm	55mm × 43 mm	40mm × 30mm	40mm × 30mm
FPGA	A5ED065BB32AE5SR0	5CSXFC6CU23I7N	10M25DAF256I7G	10M08SCU169I7G
RAM	HPS: 4GB 32bit LPDDR4 x1 FPGA: 4GB 32bit LPDDR4 x2	DDR3L-SDRAM　 2GByte	DDR2-SDRAM　128MByte	SDRAM　8MByte
ROM	32GB eMMC, 2Gb QSPI, SD	QSPI Flash 64MByte	QSPI Flash 64MByte	NOR Flash 4MByte
Clock	HPS : 100MHz FPGA : 200MHz x3	HPS side 25MHz FPGA side 50MHz, 100MHz	50MHz Cristal oscillator ×2	50MHz Cristal oscillator
Connectors	400pin BtoB Connector x2 ADF6-100-03.5-L-4-2-A-TR (Samtec) FPGA HSIO : up to 96 FPGA HVIO : up to 120 Transceiver : up to 24 ch Communication : I2C, UART, ULPI, RGMII, GPIO, JTAG	FX10A-168P-SV（HRS）168Pin×2 General Purpose I/O IP provides up to 133 I/O ports	FX10-120P-SV（HRS）120Pin General Purpose I/O IP provides up to 90 I/O ports	FX8-90P-SV1（HRS）90Pin General Purpose I/O IP provides up to 66 I/O ports
Expansion connector	–	–	DF40C-30DP-0.4V（HRS）30Pin General Purpose I/O IP provides up to 22 I/O ports	–
Debug I/F	JTAG	JTAG	JTAG	JTAG
Power supply	+5.0V (Part of VCCIO can be input separately.)	+3.3V±5% (Part of VCCIO can be input separately.)	+3.3V±5% (Part of VCCIO can be input separately.)	+3.3V±5%
Power consumption	T.B.D	T.B.D	T.B.D	Approx. 170mA（Typ.）
Operating temperature	-25~85℃	-40～85℃	T.B.D	-20℃～60℃ (On conditions without dew condensation)
